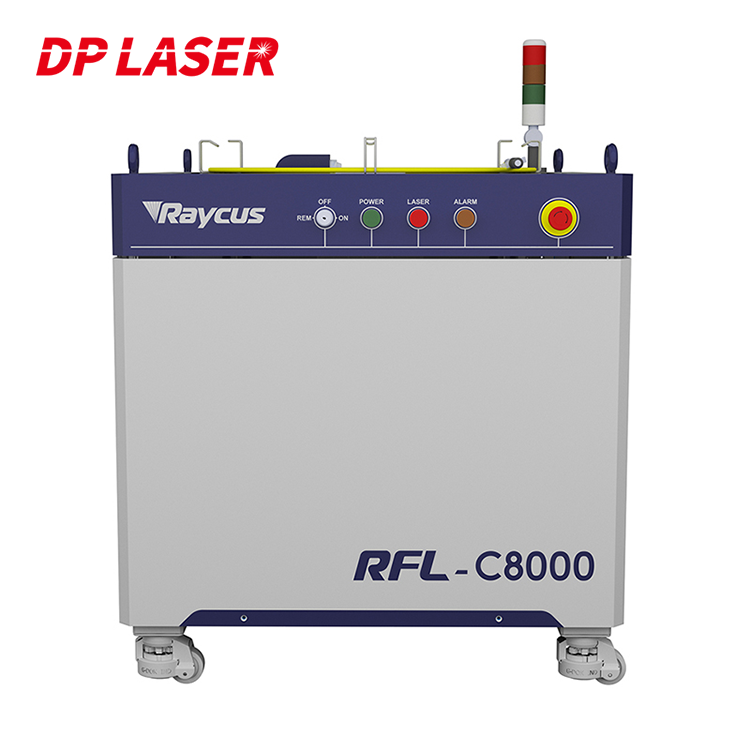

Raycus RFL-C8000S Fiber Laser Source 8KW Single Mode Customizable

Name: Raycus RFLC8000S Fiber Laser Source 8KW Single Mode Customizable
Brand: Raycus
Price: 1 USD

China Raycus RFL-C8000S Fiber Laser Source 8KW Single Mode Customizable wholesale

Brand Name : Raycus

Model Number : RFL-C8000

Certification : CE SGS FDA TUV ROHS

Place of Origin : China

MOQ : 1 Set

Price : Please contact us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 set/month

Delivery Time : 7-15 Work Days

Packaging Details : Wooden boxes that meet international export standards

Product name : Fiber Laser Source

Keywords : Laser Cutting Spare Parts

Brand : Raycus

Application : Metal Cutting

Laser type : Fiber Laser

Power : 8000W

Used for : Fiber Laser Cutting Machine

Control system : Wooden Case

MOQ : 1 Set

After-sales Service Provided : Overseas engineers provide door-to-door service

Contact Now

Raycus RFL-C8000S 8000W 8KW Single Mode Laser Source For Fiber Laser Cutting Machine

Features

The third-generation single-module CW fiber laser developed by Raycus Laser covers products ranging from 300W to 12000W. The new generation of lasers has high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, high reliability and long life. , maintenance-free operation, etc.

Raycus RFL-C8000S Fiber Laser Source 8KW Single Mode Customizable

Model	RFL-C4000	RFL-C6000	RFL-C8000	RFL-C10000	RFL-C12000	RFL-C15000
Optical Properties
Output Power (W)	4000	6000	8000	10000	12000	15000
Wavelength (nm)	1080±5
Operation Mode	CW/Modulate
Max.Modulation Frequency (KHz)	5	2
Output Power Stability	±1.4%
Red Laser	Yes(0.5mW-1mW)
Output Characteristics
Beam Delivery Optics	QBH(Customizable)
Output Fiber Diameter (μm)	100(Customizable)
BBP (mm.mrad)	≤4.5	≤5
Polarization State	Random
Delivery Cable Length (m)	20(Customizable)
Electrical Characteristics
Power Supply	340-420(Three Phase-Five Wire Connect)
Power Range (%)	10%-100%
Other Characteristics
Dimensions (mm)	670×990×1160	900×960×1160		1200×960×1160		960×1600×1188
Weight (KG)	<280	<360	<400	<450	<500	<800
Cooling	Water Cooling
Operating Temperature (℃)	10-40

Raycus RFL-C8000S Fiber Laser Source 8KW Single Mode Customizable
